Specification:

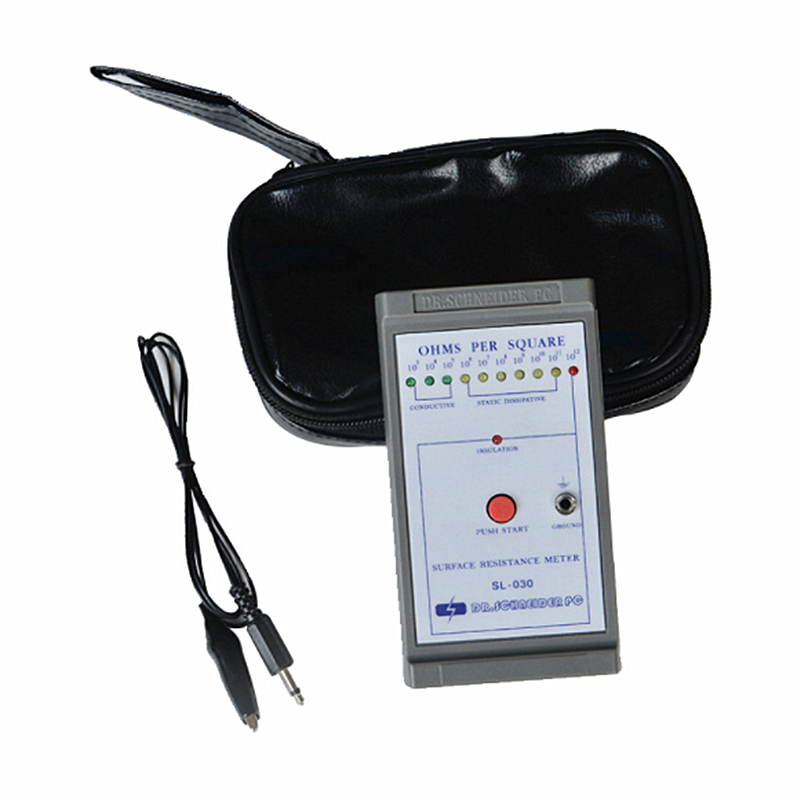

Model No.: KYD-TE0106, KYD-TE0107
Power: 9 volt PP3 alkaline battery
Measuring voltage: 9 volts
Temperature range: Operating temperature 5-49℃
Storage temperature: -15 -60℃
Relative humidity: 0% to 90% (non-condensing state)
Measurement: 10 orders of magnitude
Transition point: 1/2 logarithm (3.16 × 10n)
Transition point accuracy: ±1/2 level
Accuracy: ±0.5%
Repeatability: ±5%
Weight: 120 grams
Size: 130x70x25mm
Description:
1.Surface resistance tester uses ASTM standard D-257 parallel electrode sensing method to easily and repeatedly measure various conductive, electrostatic discharge and insulated surfaces.

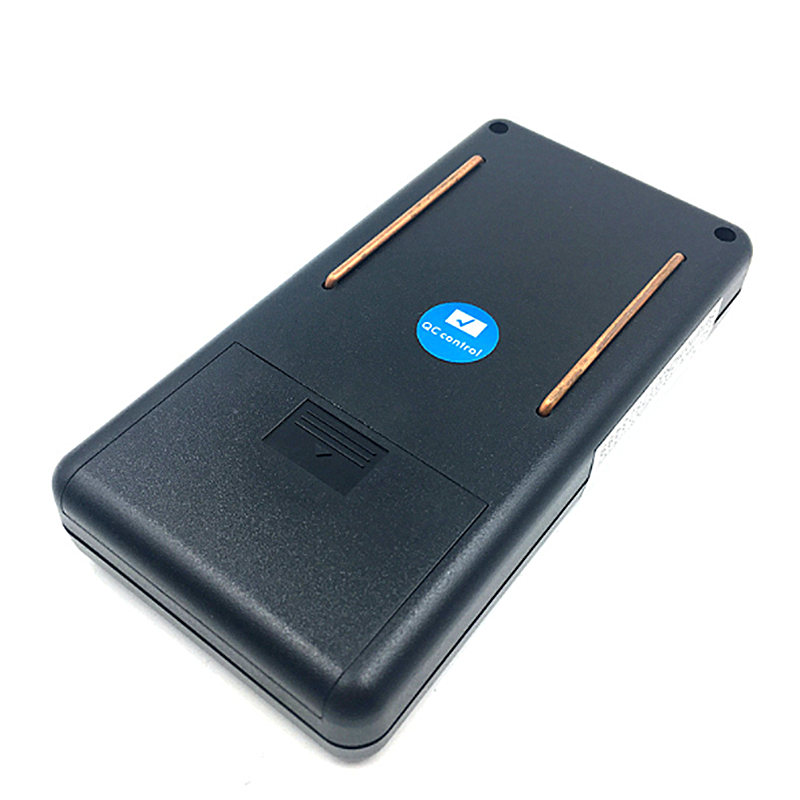

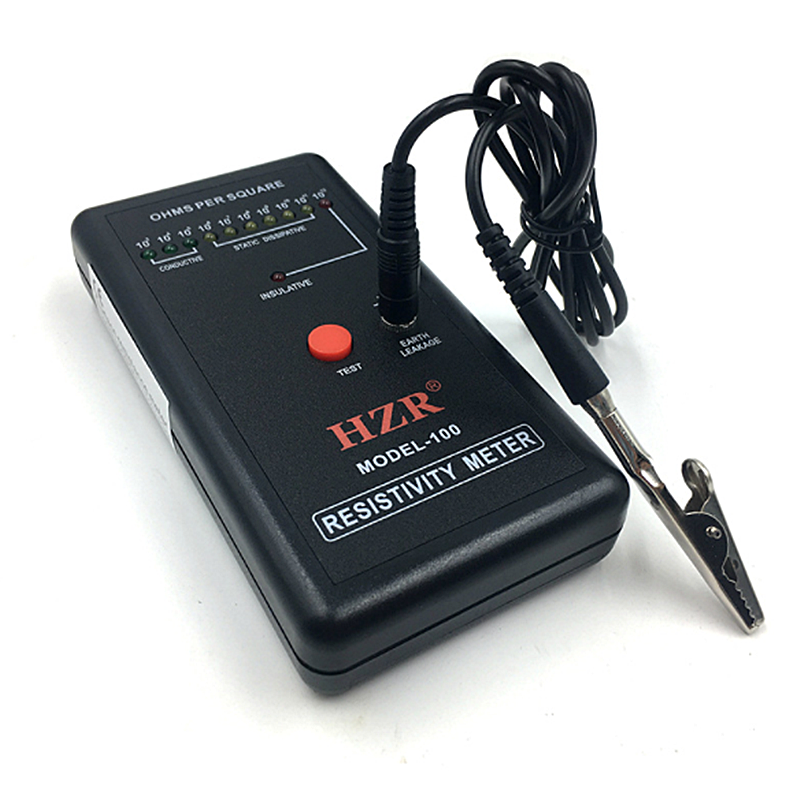

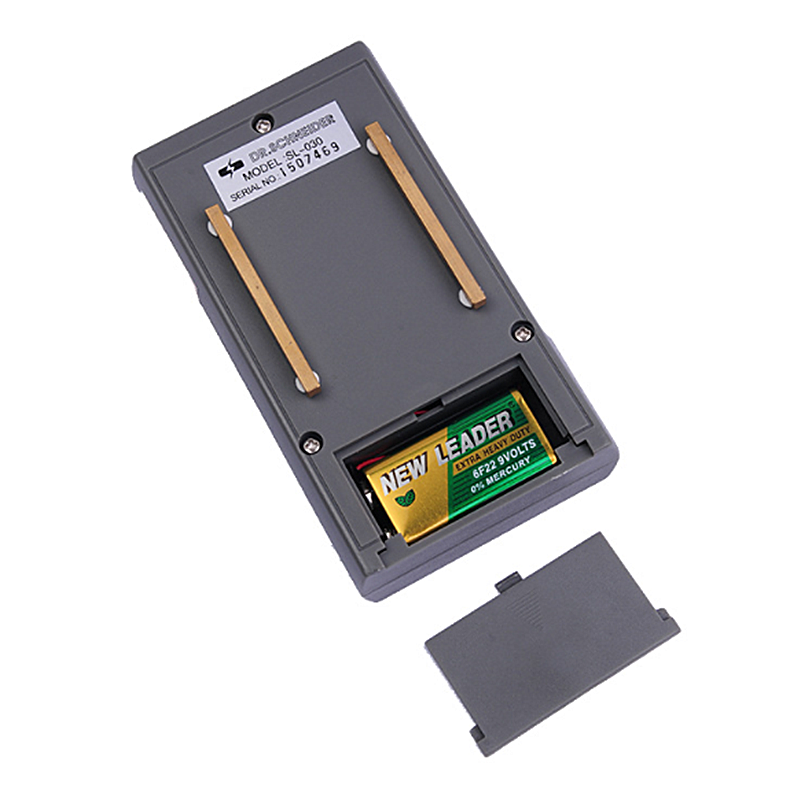

2.There is a copper strip test wire on the back. When measuring, the copper wire is close to the object to be measured, and it can be measured, which is convenient and safe. In case of small items, you can use the standard alligator clips to measure.
Measuring surface resistance: Place the tester on the surface to be tested, press and hold the red TEST button, and the continuously lit light-emitting diode (LED) indicates the magnitude of the measured surface impedance.
103=1 kohm green LED
104=10 kohm green LED
105=100 kohm green LED
106=1 megaohm yellow LED
107=10 megaohm yellow LED
108=100 megaohm yellow LED
109=1000 megaohms yellow LED
1010=10000 megaohm yellow LED
1011=100000 megaohm yellow LED
1012=1000000 megaohms red LED
>1012=Insulation Red LED
