Specification:
1.Model No.: KYD-EP2019

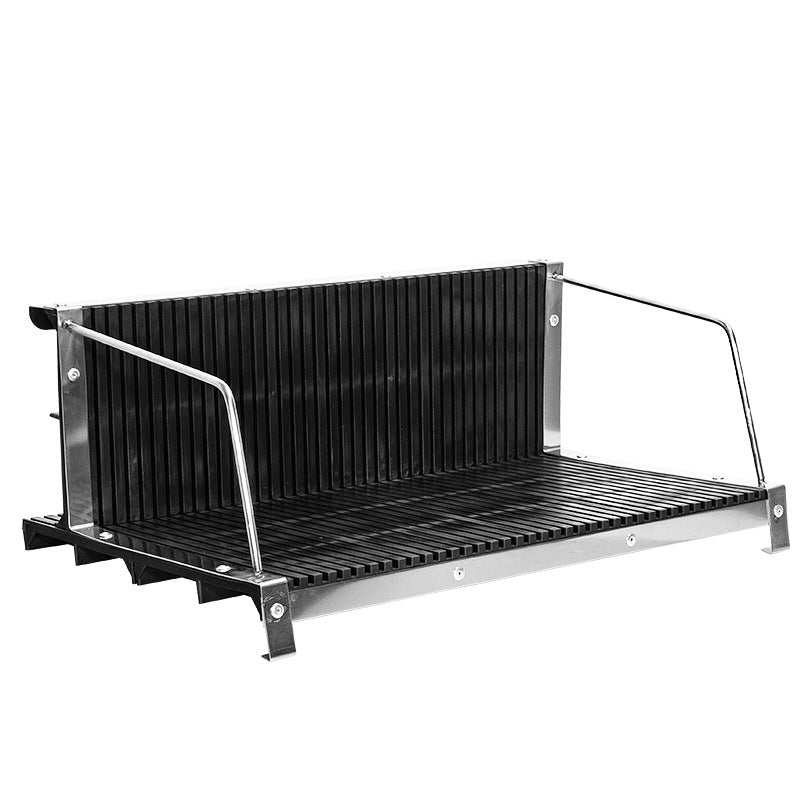

2.Basket size: L410 xW280 xH160mm±3mm
3.Hanging basket material: the frame is 201# stainless steel, the handle is 5mm diameter round steel bar, the panel is anti-static plastic material, and the pull stud is carbon steel galvanized
4.Hanging Basket inner angle: 90 degrees
5.Production method: stainless steel edging
6.Number of the PCB plate can be stored in each hanging basket: 38pcs
7.Hanging Basket guide groove: Vertically insert
8.Groove depth: 3mm
9.Width: 3mm
10.Slot length: 220mm
11.Groove height: 140mm
12.Grid spacing: 10mm
13.Surface resistance: 104Ω---109Ω
14.Hanging Basket bearing weight: 5KG
15.Hanging Basket packing: 8pcs/CTN, 80 x 46 x 37cm/CTN, G.W. about 12kg/CTN
16.Castor: 4" ESD rubber swivel castor, total 4 castors
17.Material Specifications: 25x38mm, 20x10mm, 25x25mm
Available styles:

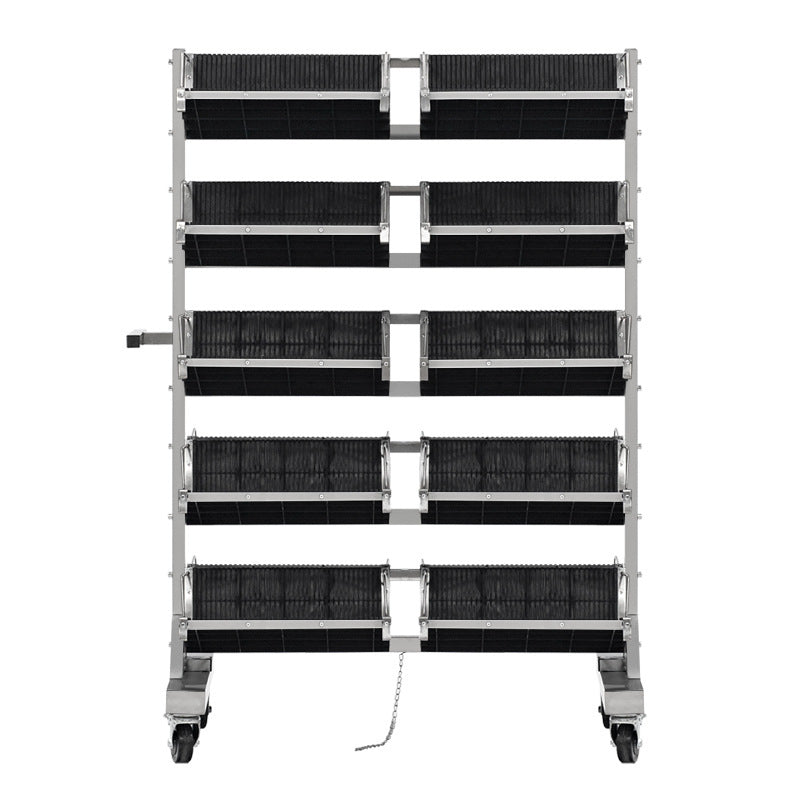

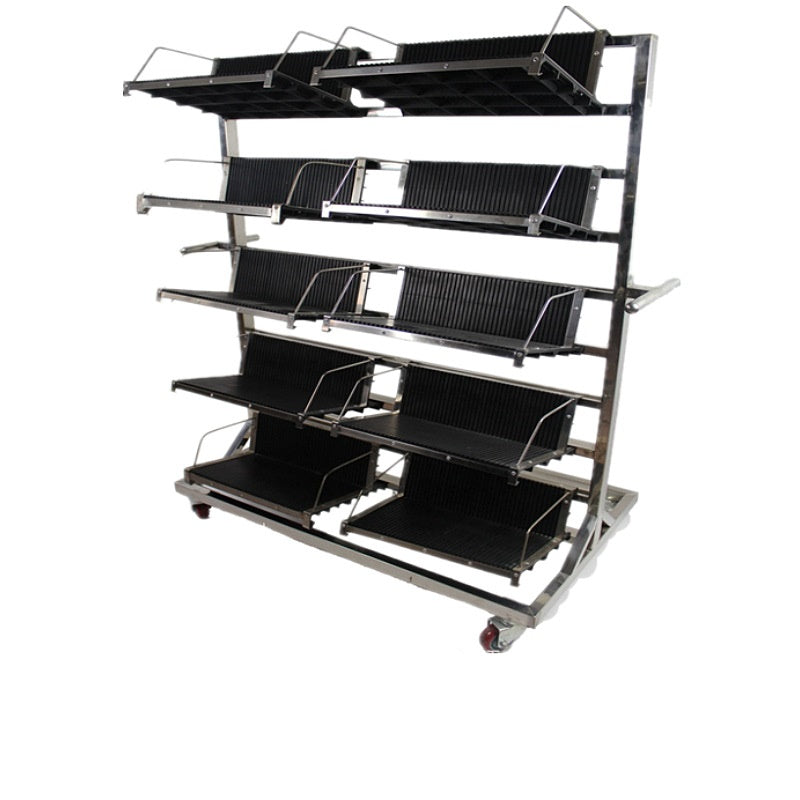

ESD cart with 16 hanging baskets, External size is 1000x600x1400mm
ESD cart with 20 hanging baskets, External size is 1000x600x1400mm
ESD cart with 24 hanging baskets, External size is 1000x600x1600mm
