Specification:
Model No.: KYD-EP1005
ESD Anti-skid Mats are mainly made of anti-static(conductive) and static-dissipative materials,and synthetic rubber. The surface layer is a 0.5mm thickness static-dissipative layer.The bottom layer is a 1.5mm thickness conductive layer. Generally,2mm thickness double-layer structure is used. The available colors include green,gray,blue,etc.
ESD Anti-skid Mats are also known as ESD pad mat, ESD floor mat, ESD table mat, ESD workbench mat, ESD dust free mat, Antistatic matting, Anti static heat resistance matting, Anti-skid Mats, etc.
1>Surface treatment: Dull or Shinny with pattern (textured)

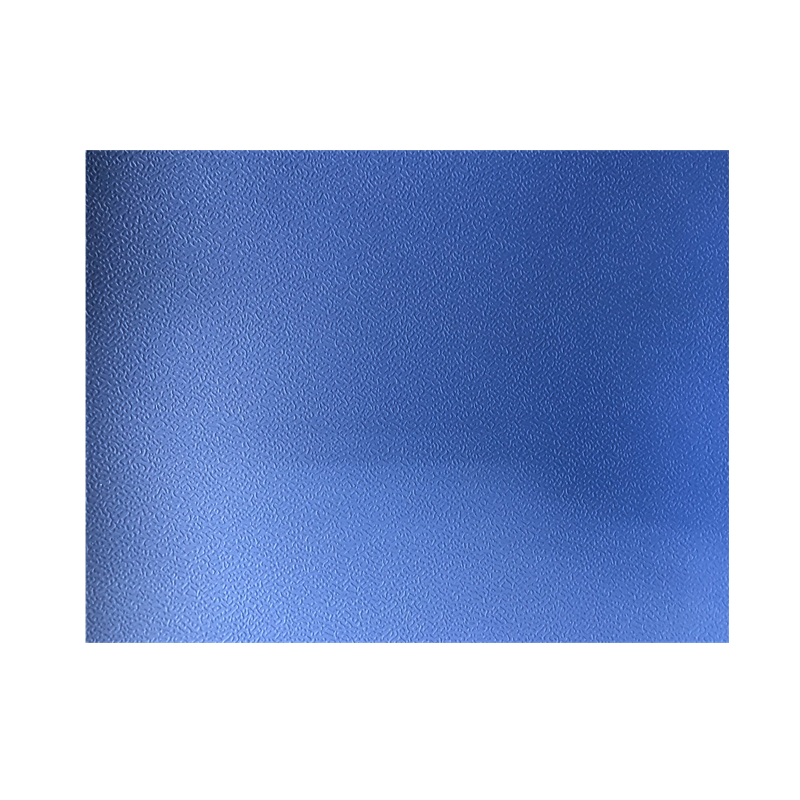

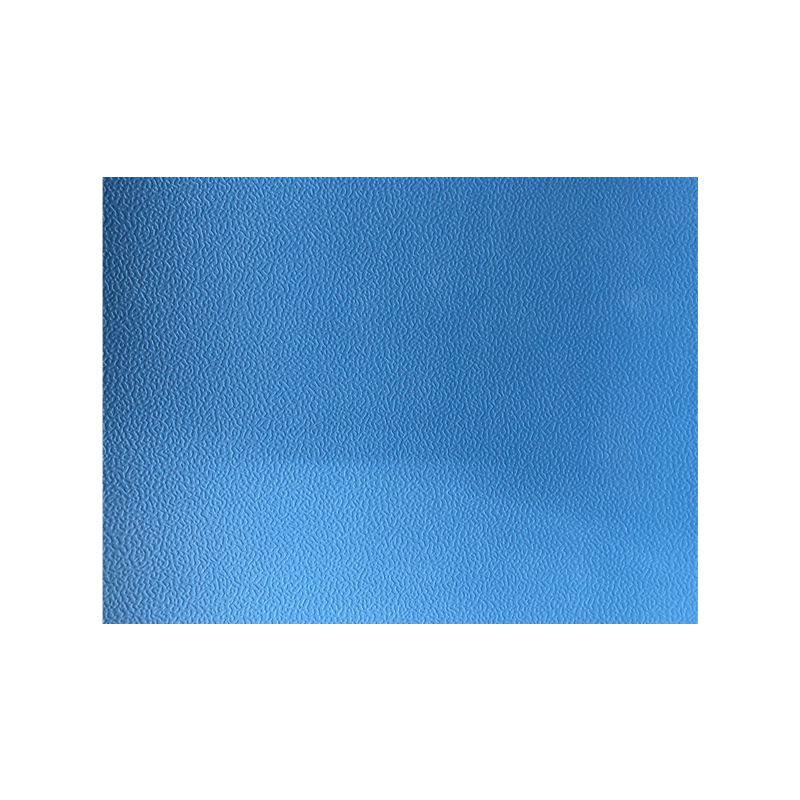

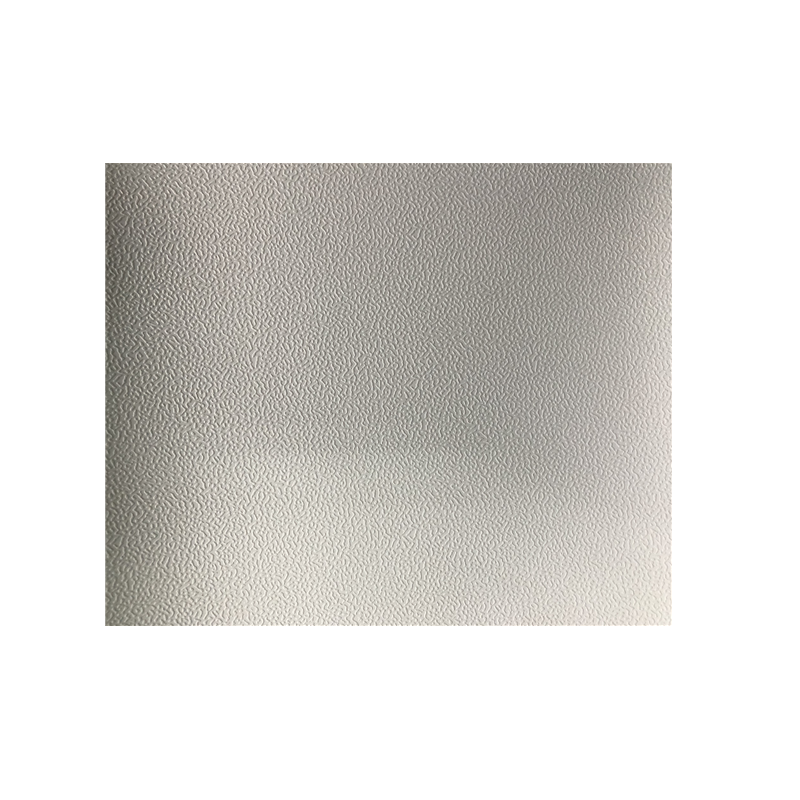

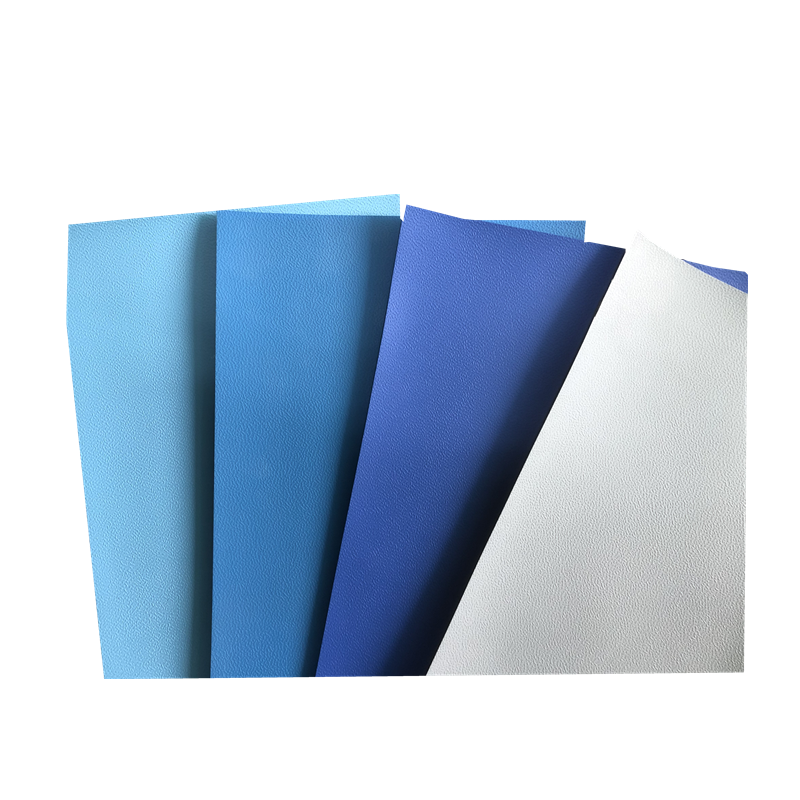

2>Color: Green/black, grey/black, blue/black, other colors can be customized
3>Thickness(mm): 2.0 or OEM
4>Layers/Mat: 2
5>Size (m) per roll: 0.6 x10, 0.9 x10, 1.0 x10, 1.2 x10 or OEM
6>Material: It's made of anti-static (conductive) and static-dissipative materials as well as synthetic rubber
7>Resistance of the surface layer(static dissipative layer): 106Ω－109Ω
8>Resistance of the bottom layer (conductive layer): 103Ω－105Ω
9>Bulk Resistvity: 105Ω－108Ω
10>Abrasion rate: <0.02g/cm2
11>Time for static dissipation: <0.1s.
12>Packing: 1 roll/CTN, 36 rolls/wooden pallet
